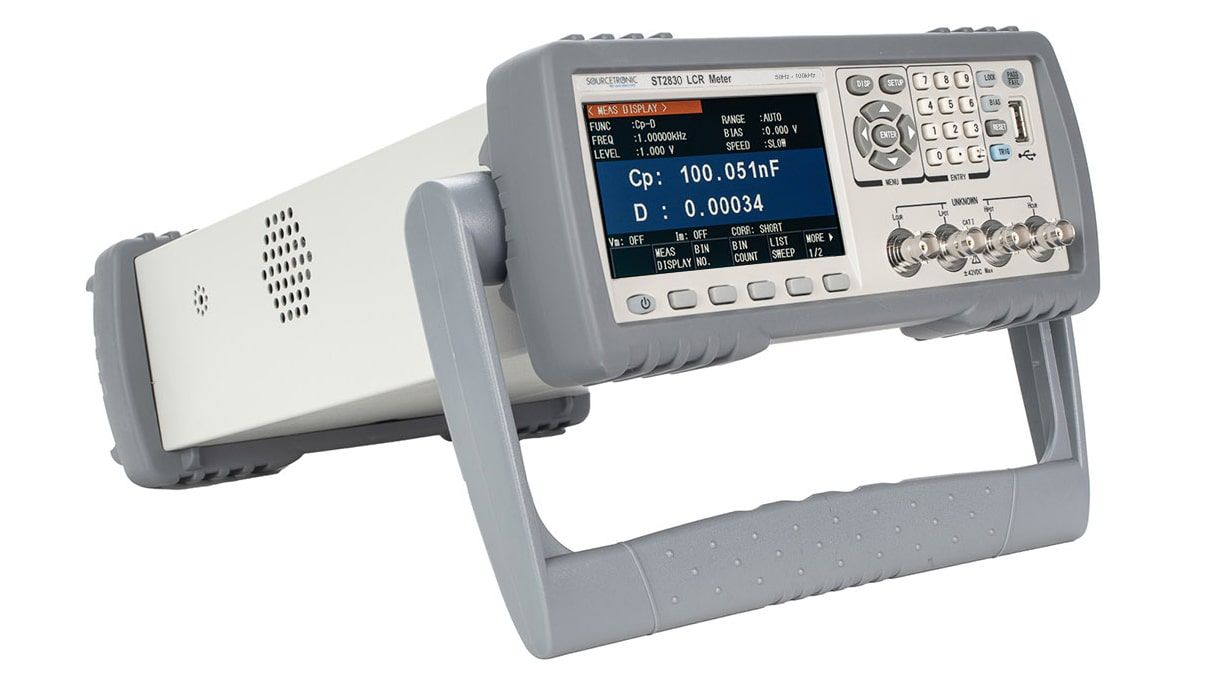

Compact LCR Meter ST2830

Name: Compact LCR Meter ST2830
Brand: AGMT GROUP
Price: 1416.10 EUR
Availability: OutOfStock

€1.416,10

Sale Sold out

Taxes included.

Prices excl. VAT plus shipping costs

Delivery

Packing

All products are robustly packed in special packaging and shipped as soon as possible via UPS. Within Germany, shipping is free for eShop orders up to 10 kg. All prices and delivery times can be found in the table.

Extras

Customs clearance (goods from 1.000 EUR outside EU): EUR 54 Movement certificate A.TR.: EUR 89 Certificate of origin: EUR 89 Large shipments with pallet: Price on request

Self-collector

Please call in advance.

Click here to see Shipping costs

Quantity

Highlights

Frequencies: 50Hz - 100kHz
Basic accuracy: 0.05%
Test parameters: |Z|, |Y|, C, L, D, Q, θ(DEG), θ(RAD), Δ%, DCR
4.3" TFT LCD-display
Interface: RS232, USB, HANDLER, GPIB (optional)
Auto-Power-On Function
Measuring time: 13ms

Specification

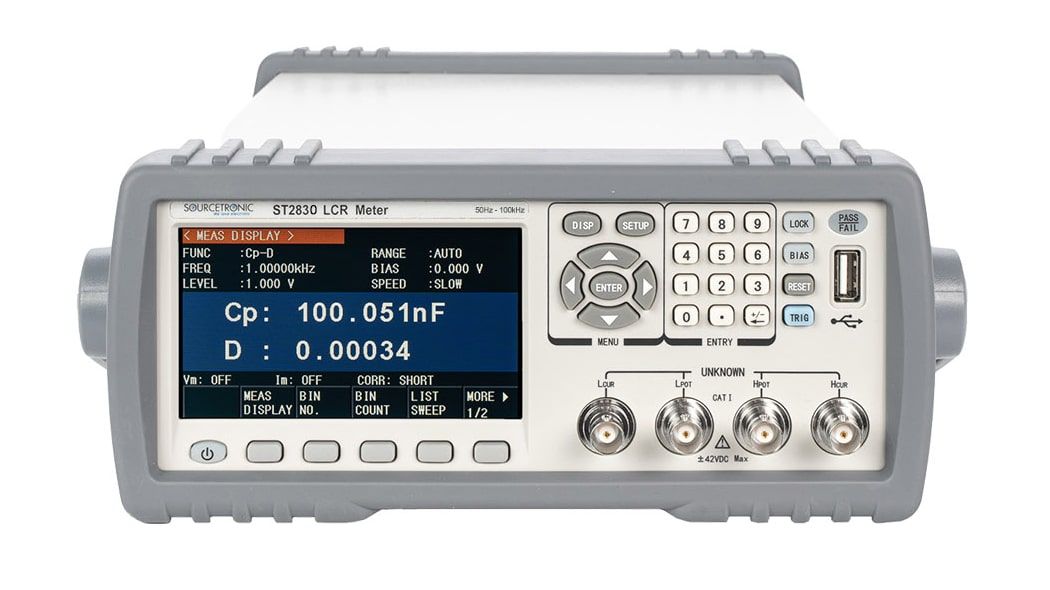

4.3" TFT LCD Display
Soft power switch
Max. 100kHz test frequency
6 digit reading resolution
10mVrms-2.0Vrms programmable test level
DCR: 1V test level, resolution 10μΩ
DCR polarity alternating to avoid magnetisation of inductors
Highest test speed 13ms/time
Selectable 30Ω/100Ω signal source impedance
V/I monitor
Built-in comparator, 10 bins sorting and count function
File storage and program update through U disk

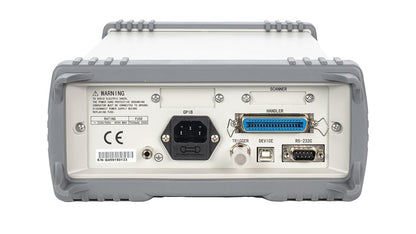

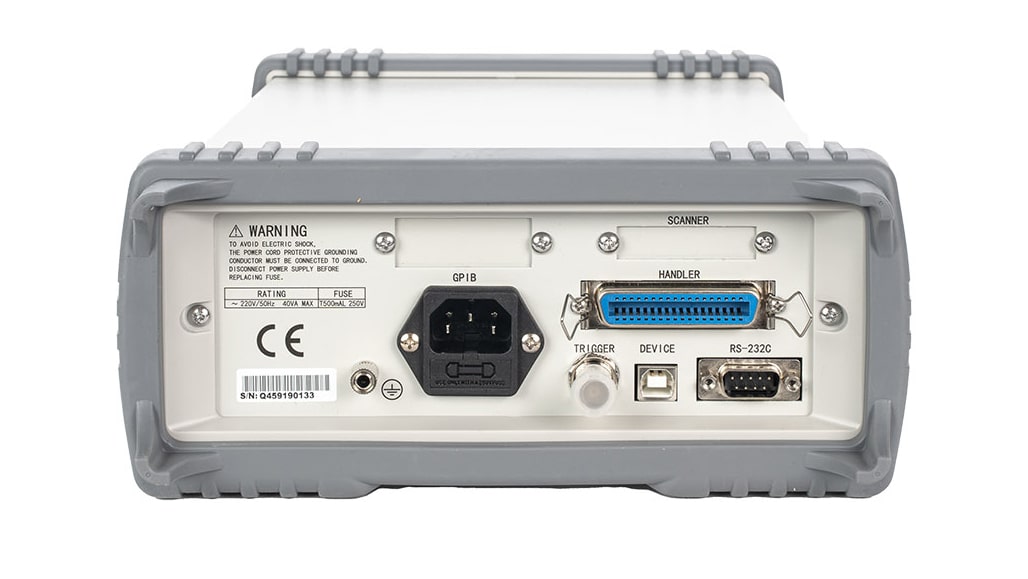

RS232, USB, HANDLER, GPIB interface (optional)

Measurement display ranges

\|Z\|, R, X, DCR:	0.00001Ω - 99.9999MΩ
\|Y\|, G, B:	0.00001nS - 99.9999S
L:	0.00001µ - 9.9999kH
C:	0.00001pF - 9.99999F
Q:	0.0001 - 99999
D:	0.00001 - 9.99999
θ(DEG):	-179.999° - 179.999°
θ(RAD):	-3.14159° - 3.14159°
Δ%:	-999.999° - 999.999°
