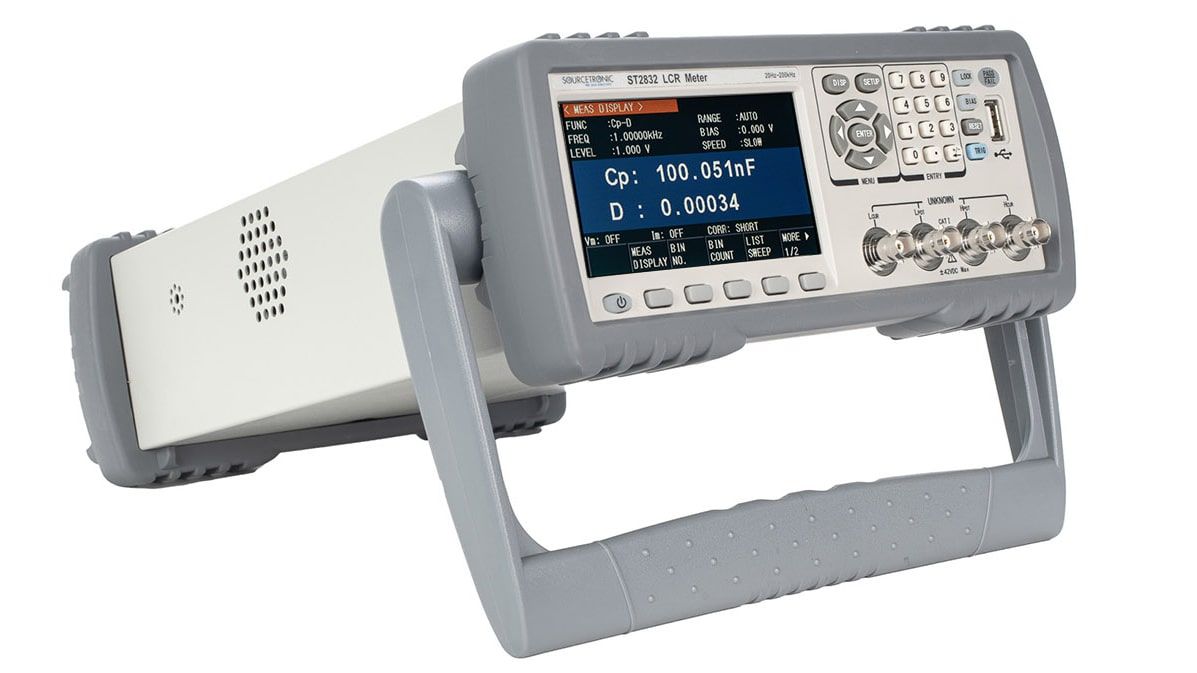

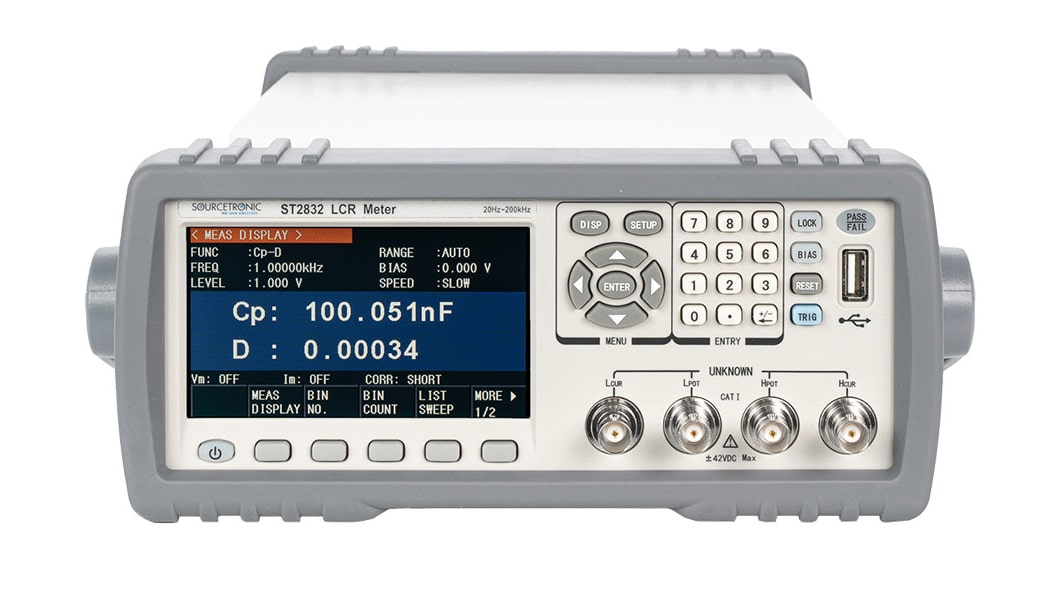

Compact LCR Meter ST2832

Compact LCR Meter ST2832

€2.011,10
€2.011,10
Sale Sold out
Taxes included.

Prices excl. VAT plus shipping costs

Delivery

Packing

All products are robustly packed in special packaging and shipped as soon as possible via UPS. Within Germany, shipping is free for eShop orders up to 10 kg. All prices and delivery times can be found in the table.

Extras

Customs clearance (goods from 1.000 EUR outside EU): EUR 54 Movement certificate A.TR.: EUR 89 Certificate of origin: EUR 89 Large shipments with pallet: Price on request

Self-collector

Please call in advance.

Click here to see Shipping costs

Highlights

  • Frequencies: 20Hz - 200kHz
  • Basic Accuracy: 0.05%
  • Test parameter: |Z|, |Y|, C, L, D, Q, θ(DEG), θ(RAD), Δ%, DCR
  • 4.3" TFT LCD-display
  • Interface: RS232, USB, HANDLER, GPIB (optional)
  • Measuring time: 13ms
  • Auto-Power-On Function
  • Comparator function

Specification

  • 4.3"TFT LCD Display
  • Soft power switch
  • Max. 200kHz test frequency
  • 6 digit reading resolution
  • 10mVrms-2.0Vrms programmable test level
  • Internal 0 - ± 5V/50mA bias source
  • DCR, 50mV-2V programmable test level, resolution 10μΩ
  • DCR polarity alternating to avoid magnetisation of inductors
  • Highest test speed 13ms/time
  • Selectable 30Ω/100Ω signal source impedance
  • V/I monitor and auto level adjustment function
  • Built-in comparator, 10 bins sorting and count function
  • File storage and program update through U disk

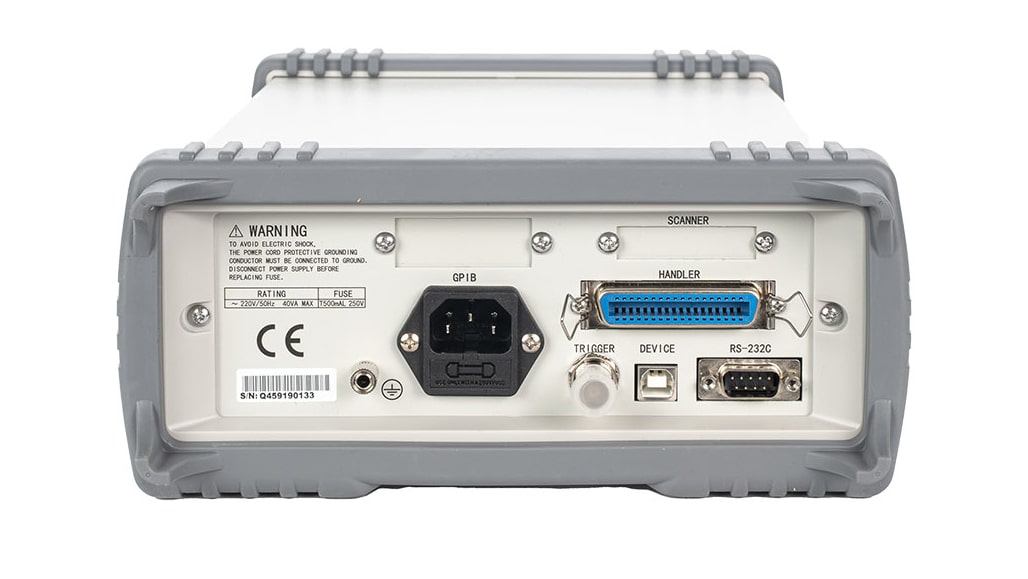

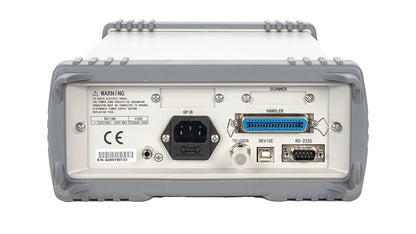

  • RS232, USB, HANDLER, GPIB interface (optional)

Measurement display ranges

|Z|, R, X, DCR: 0.00001Ω - 99.9999MΩ
|Y|, G, B: 0.00001nS - 99.9999S
L: 0.00001µ - 9.9999kH
C: 0.00001pF - 9.99999F
Q: 0.0001 - 99999
D: 0.00001 - 9.99999
θ(DEG): -179.999° - 179.999°
θ(RAD): -3.14159° - 3.14159°
Δ%: -999.999° - 999.999°

What's in the box

  • ST26010 Gilded shorting plate

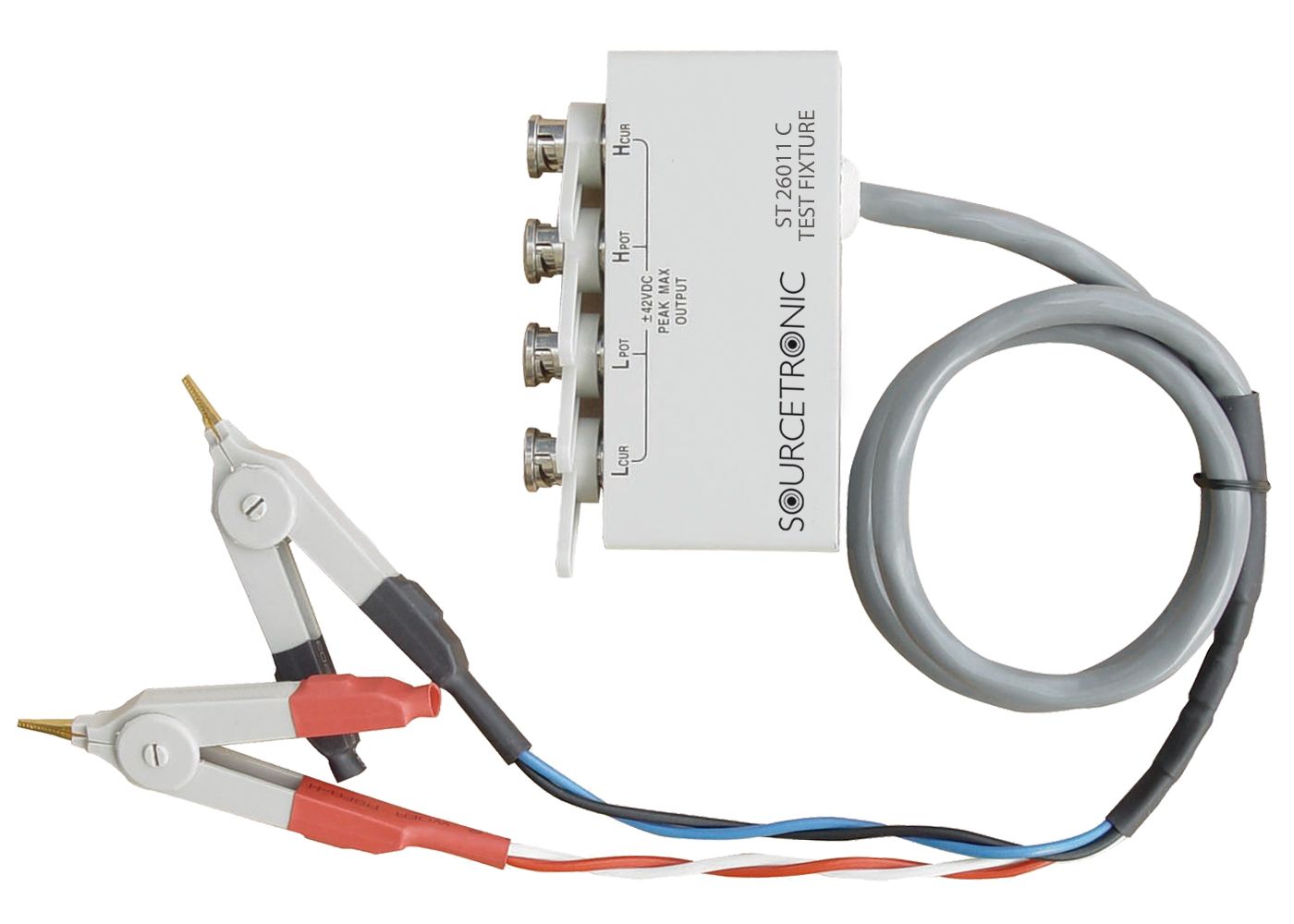

  • ST26011C 4-terminal Kelvin clip test leads

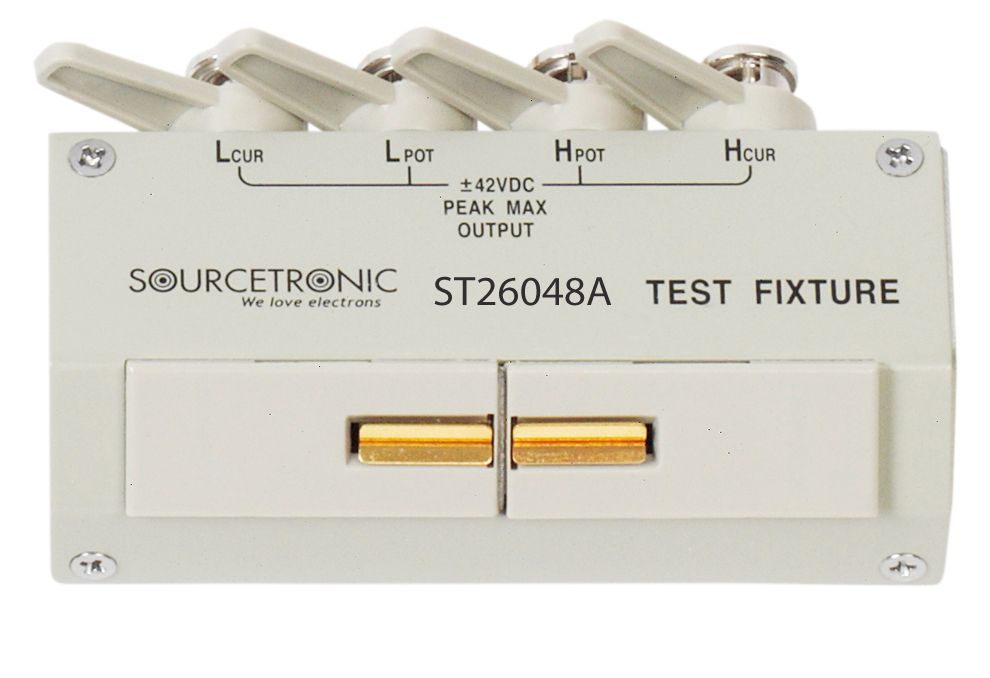

  • ST26048A 4-terminal test fixture
  • Operation manual (as PDF for download)
  • Power cord
