Sourcetronic

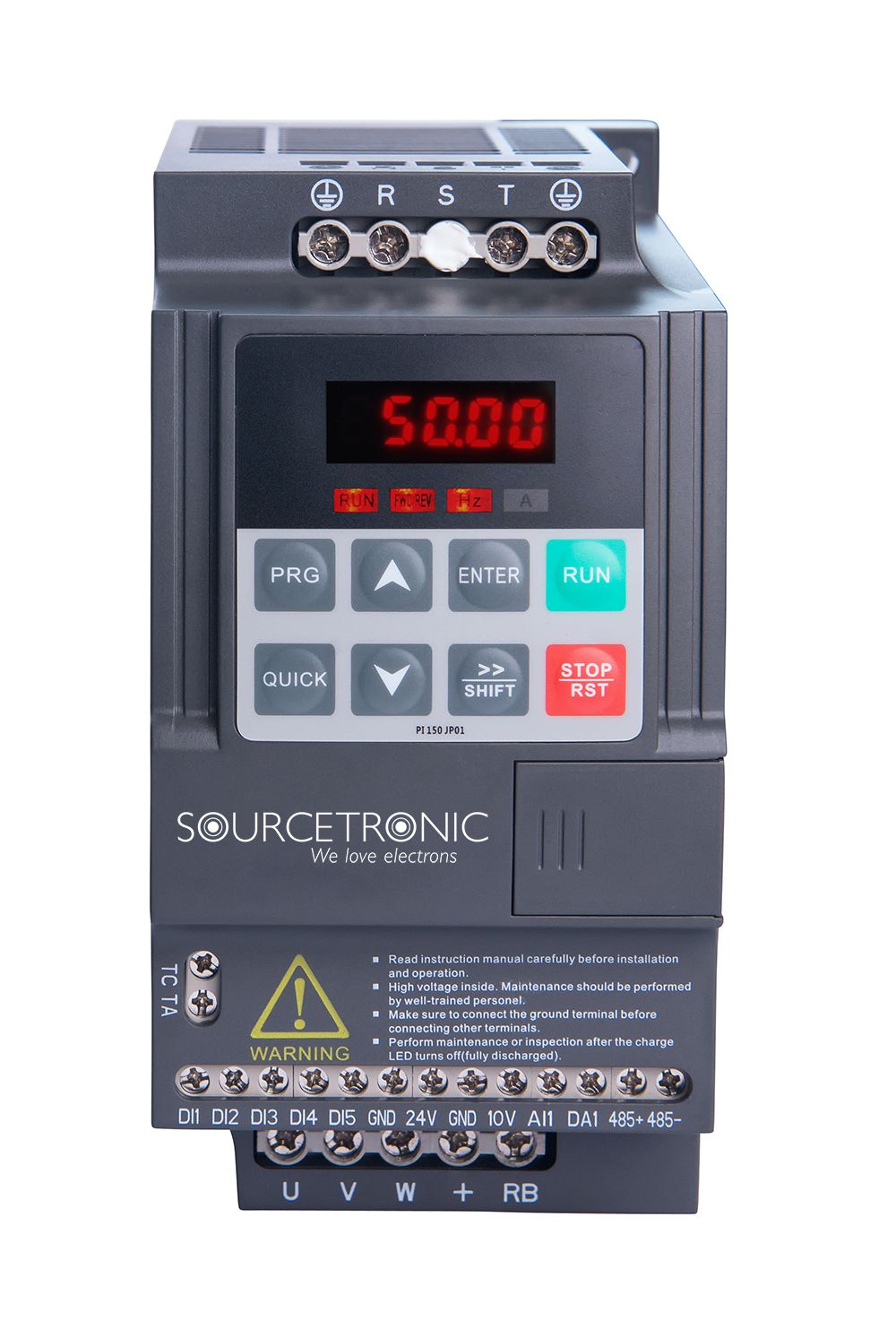

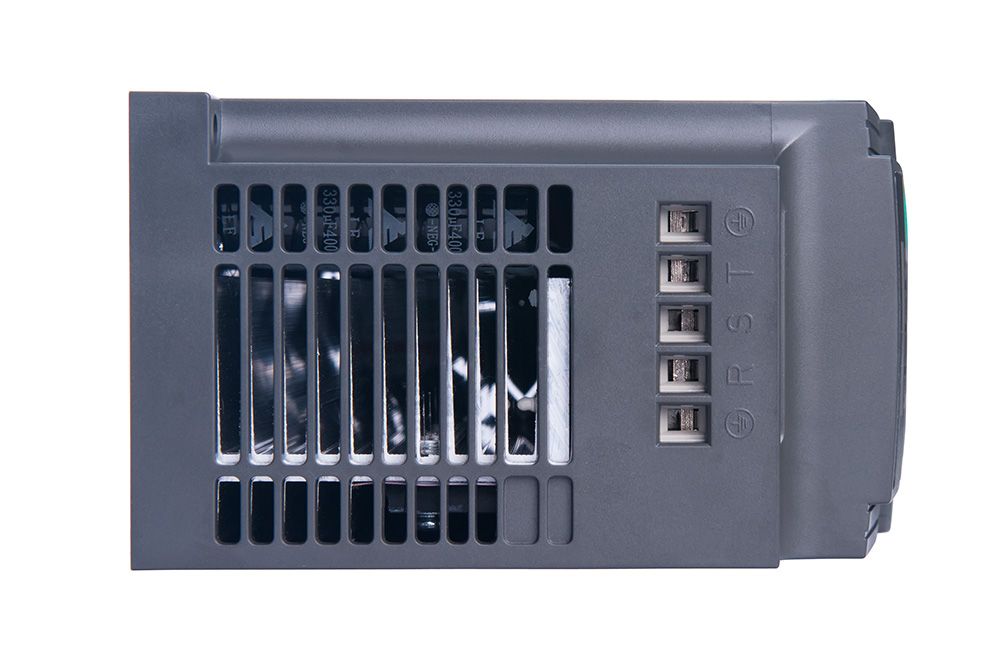

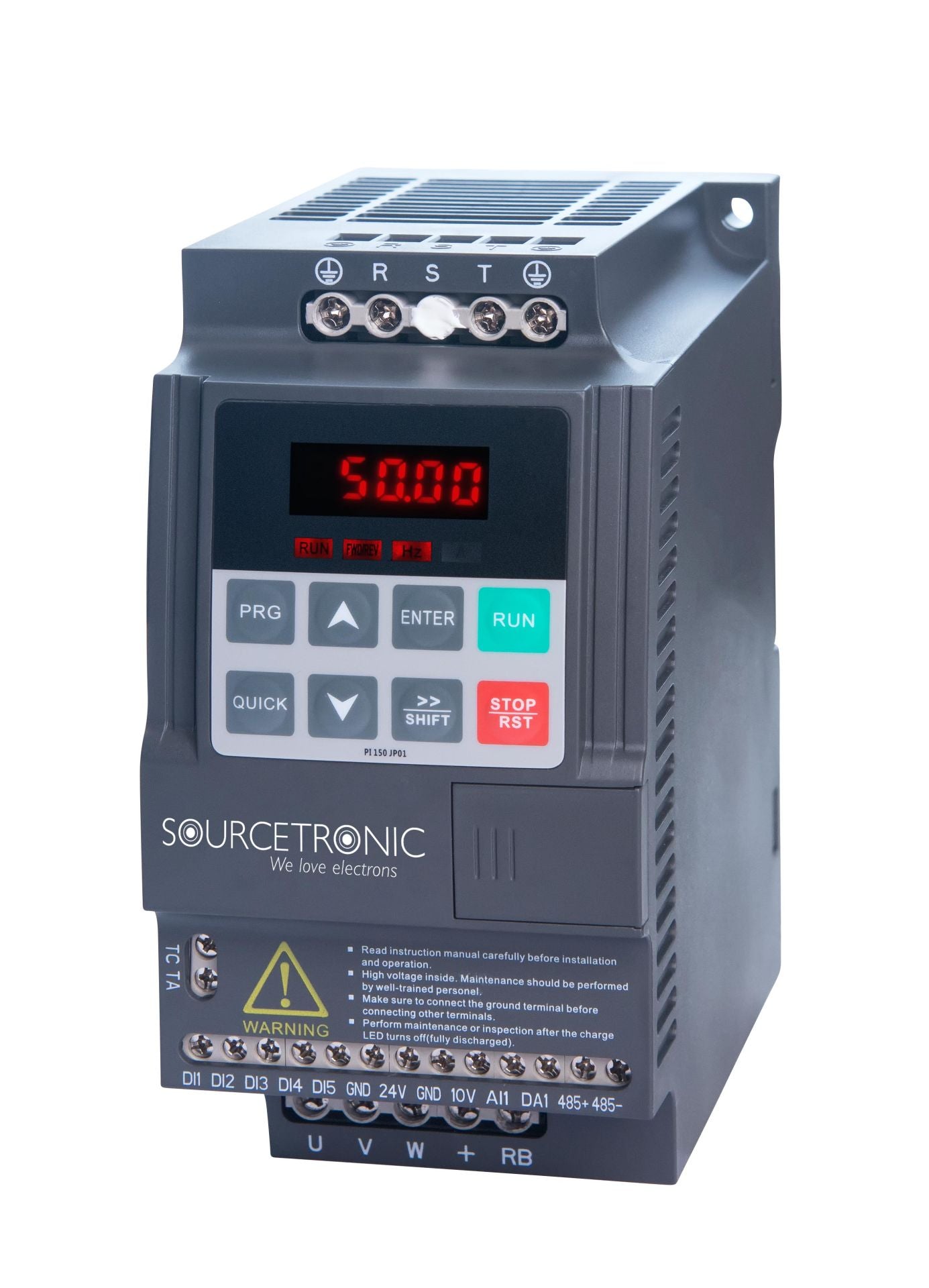

Frequency Inverter ST150 2.2KW 230V

Frequency Inverter ST150 2.2KW 230V

€183,26
€183,26
Sale Sold out
Taxes included.

Prices excl. VAT plus shipping costs

Delivery

Packing

All products are robustly packed in special packaging and shipped as soon as possible via UPS. Within Germany, shipping is free for eShop orders up to 10 kg. All prices and delivery times can be found in the table.

Extras

Customs clearance (goods from 1.000 EUR outside EU): EUR 54 Movement certificate A.TR.: EUR 89 Certificate of origin: EUR 89 Large shipments with pallet: Price on request

Self-collector

Please call in advance.

Click here to see Shipping costs

Highlights

Product number: 64265
EAN: 4260689522545
  • Power: 2.2 KW
  • Rated input current: 23 A
  • Rated output current: 10 A
  • Voltage:
    • 230VAC (220V-15% - 240V+10%, mains: 1-phase/motor: 3-phase).
    • Mains frequency: 50/60Hz, +-5%.
  • German instruction manual
  • Weight: 1.1 Kg
  • Dimensions (H/W/D): 185 / 72 / 134 mm

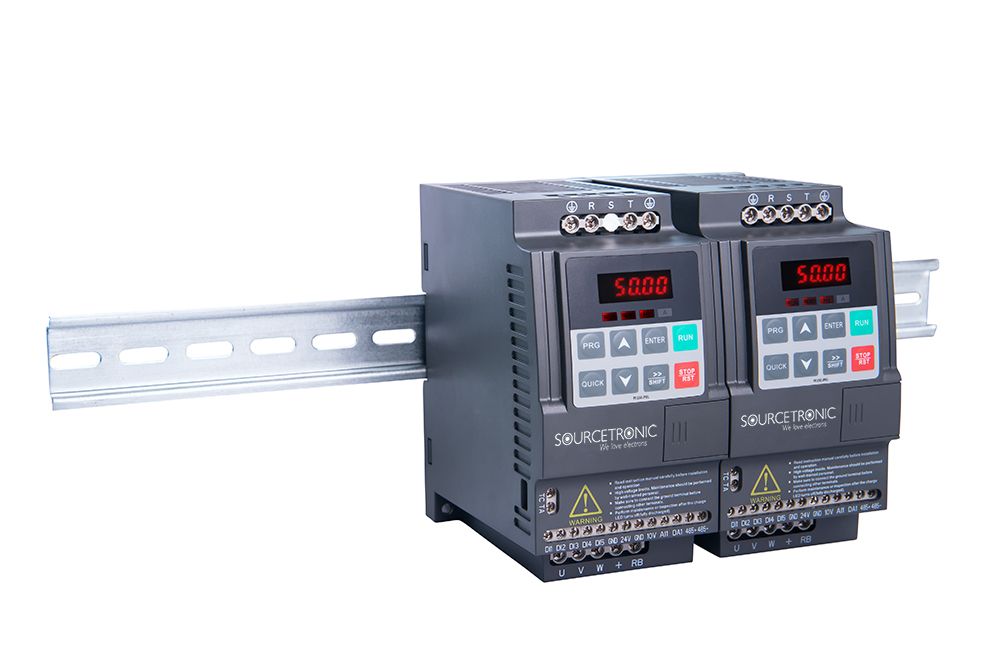

  • Top-hat rail mounting
  • "Plug & Play":
    • First-class pre-configured
    • Short installation time
    • Easy intuitive commissioning
    • Flexible digital and analogue I/Os
  • Overload capability: 1min. 150% / 2 sec. 180%.
  • Boost function for operation from approx. 1Hz, 150% torque at 0.5Hz in vector mode
  • Integrated brake chopper (minimum resistance 32 Ohm)
  • Auto slip compensation
  • Advanced PID control

Inputs

Digital inputs
Programmable digital inputs: 5, with 44 input functions
Tension level: 0 - 24VDC
Logik: NPN (active when the input is connected to GND)
Maximum voltage at the input: 30VDC
Number of programmable pulse inputs: -
Maximum input frequency: 1kHz
Resolution for frequency control: -

Analogue inputs
Number of analogue inputs: 1
Type of inputs: AI 1: 0-10V / 0-20mA
Resolution for frequency control max. frequency * 0.025%, tolerance ±0.5%@25°C

Outputs

Output (U,V,W)
Control modes: V/f characteristic / vector control o. PG
Output voltage: 0 - 100% of the mains supply
Output frequency:
0 - 300Hz vector control
Nominal motor voltage: 220/230V
Ramp times: 0,0 - 6500,0s
Ramp functions: Linear / S-curve
Overload function: 150% for one minute
180% for 2 seconds
Carrier frequency: 0.5kHz - 16.0kHz adjustable
V/f curve modes: Linear / Square / Adjustable

Digital output / pulse output
Programmable outputs: -
Tension level: -
Logic: -
Minimum output frequency: -
Maximum output frequency: -

Relay outputs
Programmable outputs: 1
Terminal number: TA-TC: N/O contact
Maximum power AC: 250VAC / 5A
Maximum power DC: 30VDC / 5A
Number of functions: 35

Analogue outputs
Programmable outputs: 1
Voltage range: 0 - 10VDC
max. 5mA
Electricity sector: 0 - 20mA
max. load 250Ohm
Tolerance ±0.5 at 25°C and ≥ 5V/10mA
Number of functions: 13

Modbus
RS485 Integrated

Integrated protection concept

  • 100 % earth fault protection
  • Over- and undervoltage protection
  • Over- and undercurrent protection
  • Temperature monitoring
  • Protection against overtemperature
  • Protection against motor overload
  • Overvoltage blocker
  • External stop signal
  • Stop when communication is interrupted
  • Abnormalities in the PID signal
  • "Power module and IGBT output stage

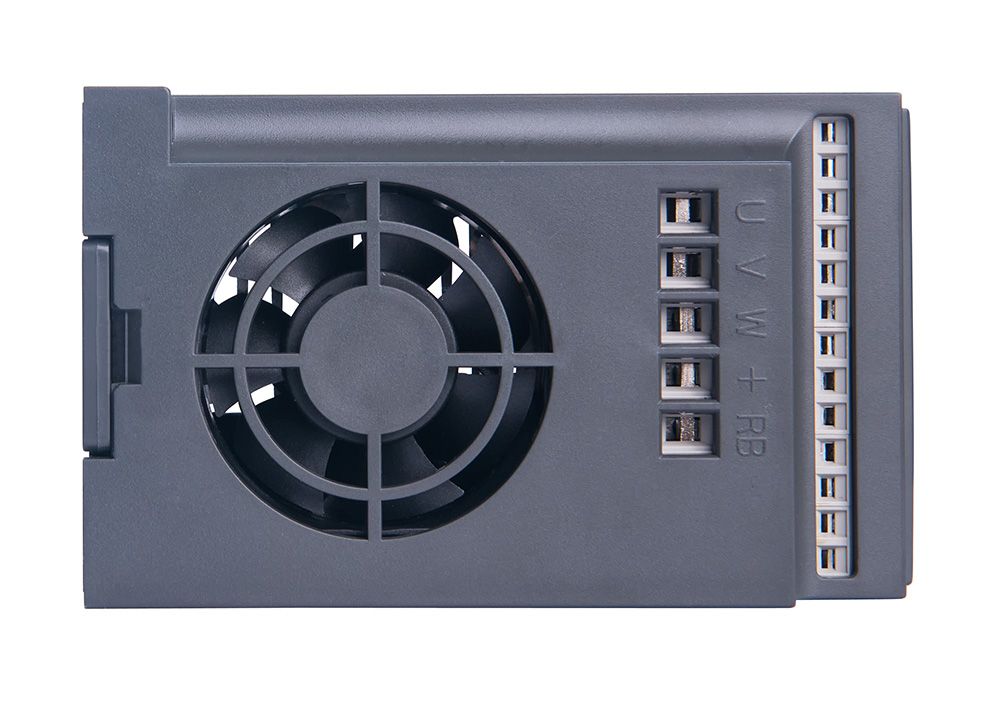

  • Cooling type: fan cooling
  • Password protection
  • Auto self-test after switching on again
  • 15ms mains failure bridging

Display and functions

  • Display:
    • Frequency, current, voltage, torque, PID, etc.
    • Error messages
    • Key lock
  • Automatic functions:
    • Calibration of motor data
    • Voltage readjustment (AVR)
    • Integrated runtime measurement and error memory
    • Active current limiting
    • Restart in case of mains failure
    • Slip compensation
    • DC braking function (duration, strength, frequency)
    • JOG control

Types of enclosures and dimensions

Rated voltage

Output power [kW]

Rated input current [A]

Rated output current [A]

Housing dimensions (LxWxH) [mm]

Installation dimensions (AxBxdxE)
[mm]

Weight (brutto / netto) [kg]
1-phase 230V 2.2 23 10 185 x 72 x 134 175 x 45 x Ø5 x 82
1.3 / 1.1

Dimensions of the ST150

Surroundings

  • Temperature range -10°C to +40°C without power reduction
  • Storage temperature -20°C to +65°C
  • Humidity up to 90% RF - without condensation
  • Operating altitude up to 1,000m above sea level without power reduction
  • Safety level according to IEC61800-5
  • Electromagnetic compatibility according to IEC61800-3
  • Vibration test under 5.9m/s²=0.6g
  • Protection class: IP20 (EN 60529), NEMA 1
  • RoHS compliant
  • CE-compliant

Scope of delivery

  • Frequency converter ST150
  • Detailed, German operating instructions

More functions

  • Nominal motor frequency 50Hz and 60Hz
  • Forward and reverse operation
  • Controller enable Control panel/terminals/bus
  • 16 fixed speeds selectable via switching inputs
  • 7 different ways to control the speed
  • PWM clock frequency adjustable in 0.1 kHz steps: 0.5 kHz-16 kHz
  • "Plug & Play
  • Reduced motor noise due to precise PWM function
  • Avoidance of vibrations due to selectable blocking frequencies
