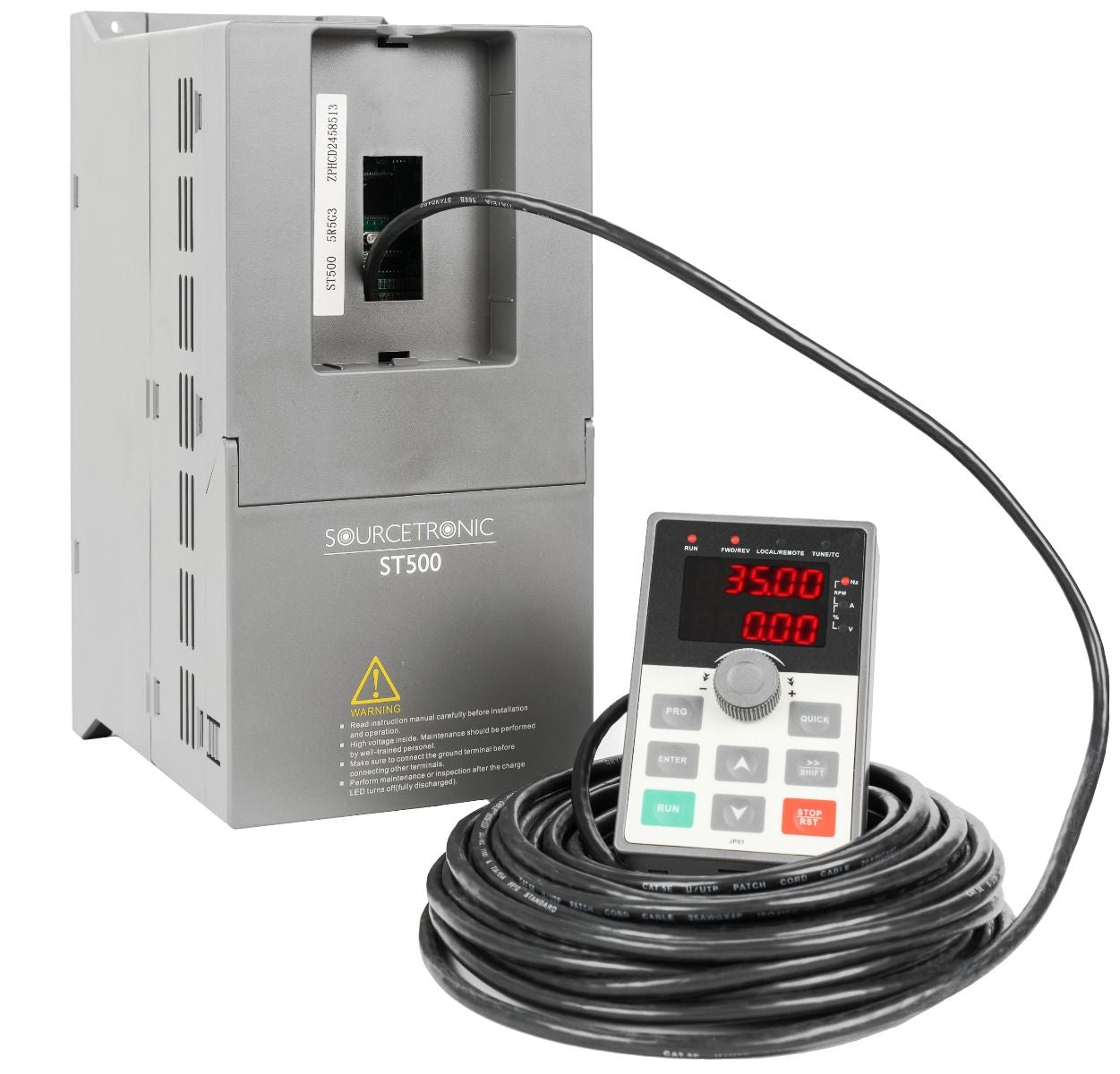

Frequency Inverter ST500 2.2KW 500V
Frequency Inverter ST500 2.2KW 500V
Regular price
€355,81
Regular price
Sale price
€355,81
Unit price
per
Taxes included.
Prices excl. VAT plus shipping costs
Prices excl. VAT plus shipping costs
Delivery
Packing
All products are robustly packed in special packaging and shipped as soon as possible via UPS. Within Germany, shipping is free for eShop orders up to 10 kg. All prices and delivery times can be found in the table.
Extras
Customs clearance (goods from 1.000 EUR outside EU): EUR 54 Movement certificate A.TR.: EUR 89 Certificate of origin: EUR 89 Large shipments with pallet: Price on request
Self-collector
Please call in advance.
Click here to see Shipping costs
Couldn't load pickup availability
Highlights
Product number: 62994
EAN: 4260409229334
- Power: 2.2KW
- Rated input current: 5.7 A
- Rated output current: 5.0 A
- Voltage: 480V (±10%)
- Frequency: 50/60Hz, ± 5%
- Optimal pre-set of parameters
- Short installation time, easy intuitive start-up operation

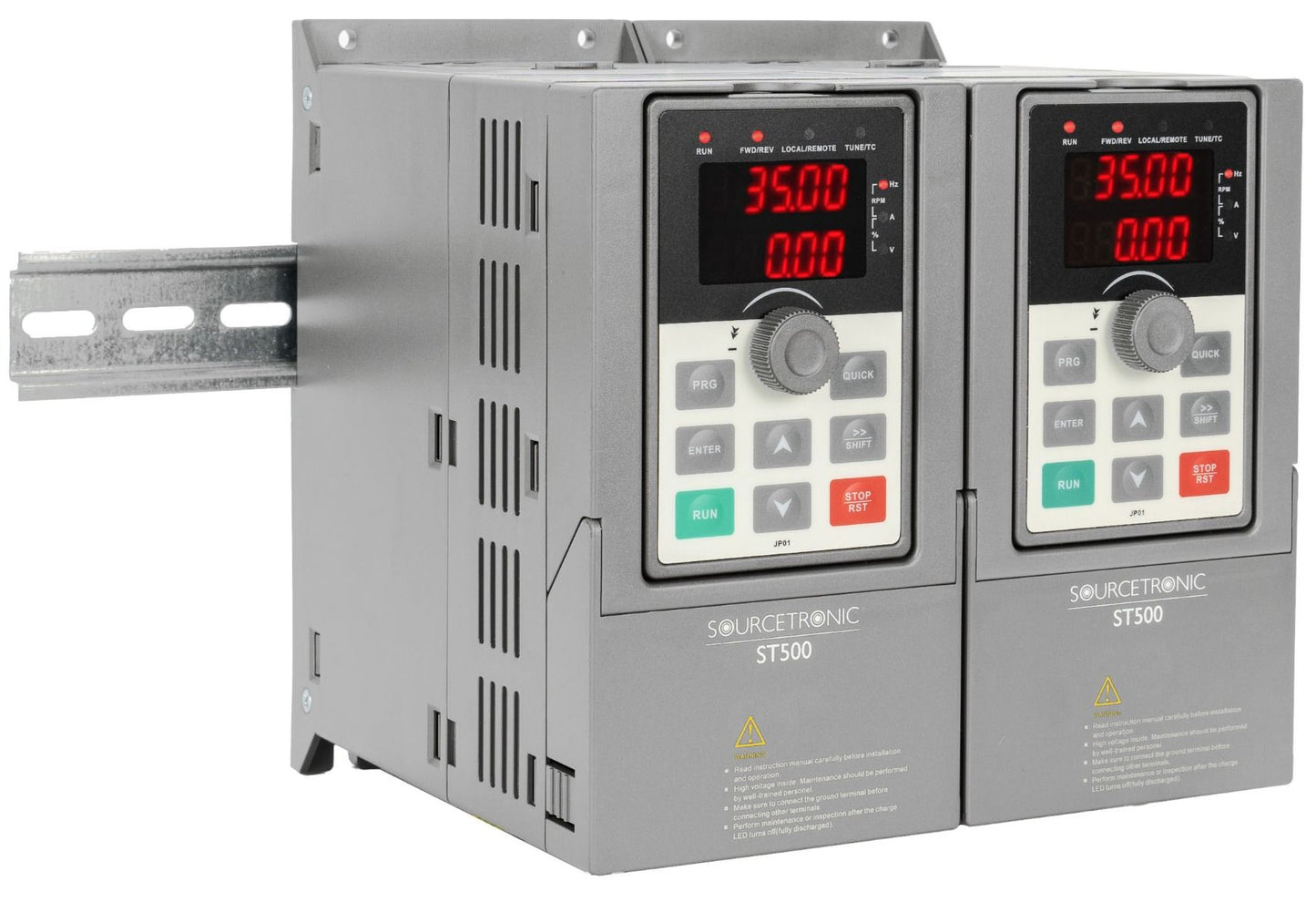

- Mounting on carrier rail possible
- Flexible digital – and analogue I/Os
- Motor speed adjustable by potentiometer
- "Open-Loop-Boost-Mode"
- Auto slip compensation
- Extended PID functions
- Stop-function
Inputs
Digital Input |
|
| Programmable Digital Inputs: | 8 |
| Voltage: | 0 - 24VDC |
| Logic: | PNP / NPN |
| Max input voltage: | 30VDC |
| Number of programmable pulse inputs: | 1 |
| Max input frequency: | 100kHz |
| Resolution for frequency control: | 0,01Hz (0-320Hz), 0,1Hz (0-3200Hz) |
Analog inputs |
|
| Number of analog inputs: | 3 |
| Type of inputs: | AI 1: 0-10V / 0-20mA AI 2: 0-10V / 0-20mA AI 3:-10-+10V / 0-20mA, PT100 |
| Resolution for frequency control: | max. Frequency * 0,1% |
Outputs
Output (U,V,W) |
|
| Control modes: | V / F characteristic / vector control O. PG / vector control m. PG |
| Output voltage: | 0 - 100% of the power supply |
| Output frequency: | 0 - 300Hz (Vector control) 0 - 3200Hz (V/F - Control) |
| Rated motor voltage: | 500V |
| Ramptimes: | 0,0 - 6500,0s |
| Ramp functions: | Linear / S-Curve |
| Overload functions: | 150% for a minute 180% for 2 seconds |
| Carrier frequency: | 0,5kHz - 16,0kHz adjustable |
| U / f curve modes: | Linear / Square / Adjustable |
Digital output / Pulse output |
|
| Programmable Outputs: | 2 |
| Voltage | 24VDC |
| Logic: | PNP |
| Min. Output frequency: | 0Hz |
| Max. Output frequency: | 100kHz |
Relais outputs |
|
| Programmable Outputs: | 2 |
| Terminal number: | TA1 / TC1 (close) TB1 / TC1 (open) |
| Ma. Power AC: | NO: 250VAC / 5A; NC:250VAC / 3A |
|
Max. Power DC: |
30VDC / 1A |
| Functions: | 39 |
Analog Outputs |
|
| Programmable Outputs: | 2 |
| Voltage: | 0 - 10VDC max. 5mA |
| Current: | 0 - 20mA max. load 250Ohm |
| Functions: | 16 |
Modbus |
|
| RS485 | Integrated |
Technical Data
- Start/Stop-ramp linear: 0.0-6500.0s
- PID feedback signal DC(0-10V), DC(0-20mA)
- Motor nominal frequency 50Hz and 60Hz
- Forward and reverse operation
- Controller release/terminals/Bus
- 16 fixed speeds can be freely set and chosen by input signals
- 10 ways to control speed
- Step less setting of PWM frequency 1kHz-15kHz
- Slots for extensions: special pump control, I/O extension, incremental encoder
- Output frequency:
- Vector control: 0-400Hz
- V/F control: 0-320Hz
- Control mode:
- V/F control (linear, square)
- Vector control W/O PG
- Accuracy: 0.5%
- Speed control:
- Control range 1:100
- Accuracy 0.5%
- Torque:
- Automatic boost for low frequencies down to 1Hz
- Manual increasing 0.1% - 30%
- Response time: <40ms
- Starting torque: 150% from 0.5Hz
- Speed limits adjustable
- Closed-Loop-Technique
- Display:
- Frequency, current, voltage, torque, PID, ...
- Error message
- Keyboard lock
- Automatic functions:
- Indication of motor parameters
- Tension regulation (AVR)
- Zero-Voltage-Switching
- Active current limitation
- Restart after power fail
- Slip compensation
- DC brake function (time, intensity, frequency) & JOG-control
- Reduced motor noises caused by precise PWM-function
- Elegant avoidance of vibrations by blocking frequencies
- Variable speed by continuous torque
- Error memory
- Temperature -10°C up to +40°C above sea level without power reduction
- Storage temperature -20°C up to +65°C
- Humidity 90% RF – without condensation
- Altitude up to 1.000m above sea level without power reduction
- Safety standards in accordance to IEC61800-5
- Electromagnetically tolerance in accordance to IEC61800-3
- Vibration test below 5.9m/s² = 0.6g
- Protection class: IP20 (EN 60529), NEMA 1
- RoHS-conform
- CE-conform
Types of enclosures and dimensions
Rated voltage |
Output power [kW] |
Rated input current [A] |
Rated output current [A] |
Housing dimensions (LxWxH) [mm] |
Installation dimensions (lxwxd) [mm] |
Weight [kg] |
| 3-phase 500V | 2.2 | 5.7 | 5.0 | 185x90x154 | 174x65x5 | 1.0 |
Integrated protection concept
- 100 % ground fault protection
- Over- and under-voltage
- Over- and under-current
- Overheating protection
- Over voltage stall
- Overheating protection
- Communication fault
- PID feedback abnormity
- Cooling according to power rating (fan temperature controlled)
- Password protection
- Auto-self testing after restart
- Power failure bypass
I/O interfaces
- Digital and analog I/O - flexible configuration
- 8 digital inputs 9-30VDC (PNP/NPN)
- 3 analog iputs (0-10V / 0-20mA)
- 2 digital output 0-24VDC / 0-40mA
- Pulse output 0-50kHz
- 2 analog input 0-10VDC, 0-20mA
- 2 relay output (250VAC/30VDC, 5A)
- RS485 interface
