Pump Control 7.5kW SPC075

Name: Pump Control 7.5kW SPC075
Brand: AGMT GROUP
Price: 2034.78 EUR
Availability: OutOfStock

€2.034,78

Sale Sold out

Taxes included.

Prices excl. VAT plus shipping costs

Delivery

Packing

All products are robustly packed in special packaging and shipped as soon as possible via UPS. Within Germany, shipping is free for eShop orders up to 10 kg. All prices and delivery times can be found in the table.

Extras

Customs clearance (goods from 1.000 EUR outside EU): EUR 54 Movement certificate A.TR.: EUR 89 Certificate of origin: EUR 89 Large shipments with pallet: Price on request

Self-collector

Please call in advance.

Click here to see Shipping costs

Quantity

Highlights

Motor power: up to 7.5 kW / 400 V
Rated current: 17 A
Integrated frequency converter ST500
Mains filter STFI (C2 environment)
Motor choke
Dry-running protection via current measurement
Connections:

External dry-running protection
Motor temperature monitoring (PT100/PT1000/PTC)

Protection concept:

Overvoltage, undervoltage, overload protection
Phase symmetry monitoring
Password protection

Technical Data

Power (motor): up to 7.5 kW
Output voltage (motor): 0-400 VAC 0-50 Hz
Maximum frequency: up to 3200 Hz
Operating voltage: 400 VAC 50/60 Hz
Rated current (inverter): 20.5 A
Back-up fuse: 40 A
Supply cable: max. 4 mm² copper
Motor cable: max. 4 mm² copper, max. 50m long (shielded)
Protection class: IP54, EN60529/NEMA4
Dimensions (W/H/D): 600/800/250 mm - The dimensions may vary depending on the version due to additional components such as filters, switches, etc.
Weight: 50 kg

Functions

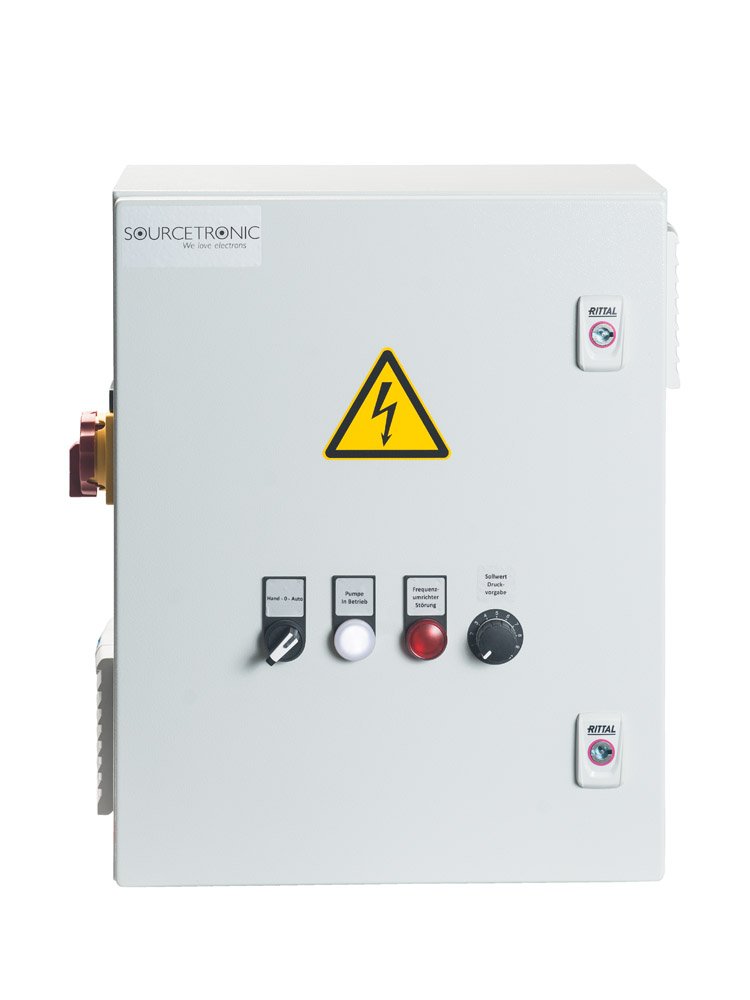

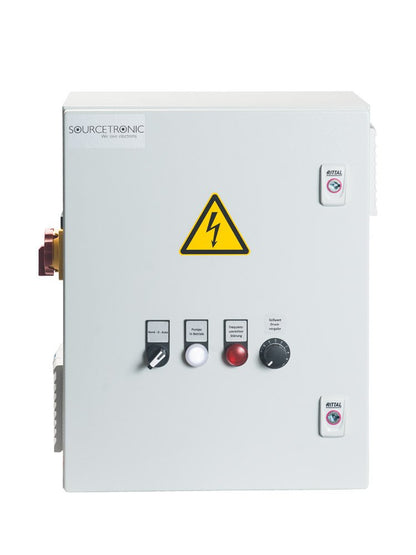

						Manual operation: Speed control via potentiometer in the control cabinet door Switching off by setting the switch to the "0" position Automatic mode: Speed control via PID control depending on the set reference value Actual value e.g. via pressure transducer or level probe Pressure control, level control, temperature control (PID), etc. SIEMENS operating/indicating elements: Main switch, latching (yellow/red, side panel left) "Hand-0-Auto" toggle switch Precision potentiometer 4.7 kOhm Indicator lamp, red, "malfunction Indicator light, white, "pump in operation Variable START-STOP ramps Rest and wake-up frequency Operating hours counter 150% 1min, 180% 2s Overload capability Double display inside (e.g. output frequency and motor current)
Other data

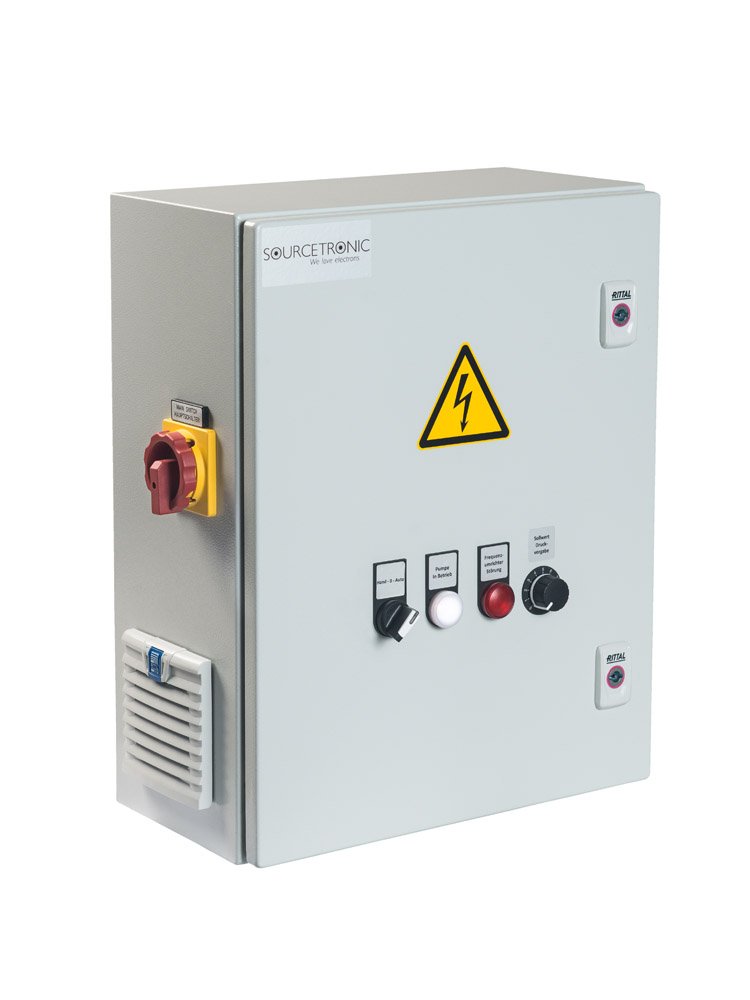

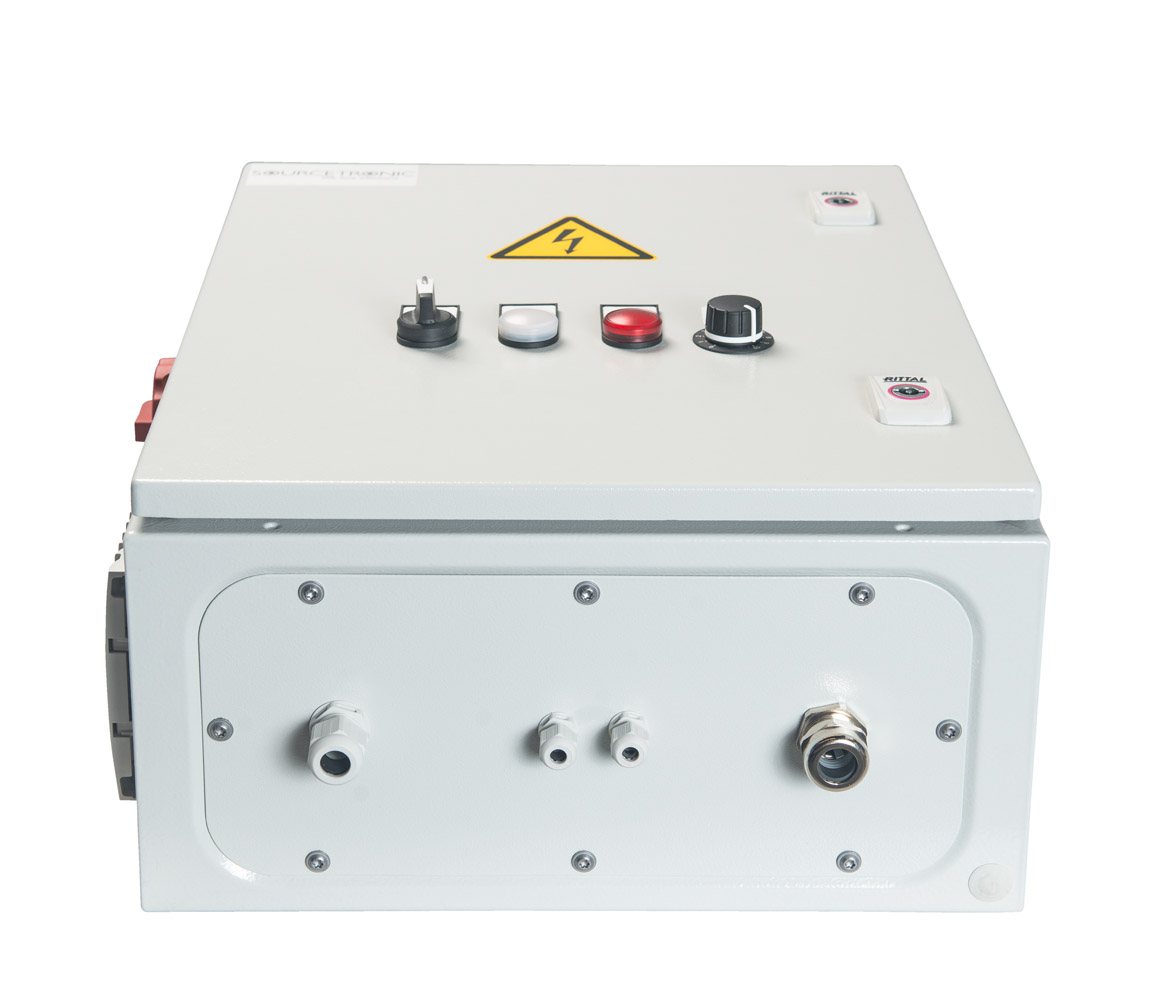

Housing Powder-coated and dip-primed steel Single-door, closed all round, foamed-in door seal Door hinge left with 2 sash fasteners Galvanised mounting plate and WAGO connecting terminals Air-conditioned with TopTherm filter fan (B4A circuit-breaker protected) Colour: RAL 7035 structure Dimensions (W/H/D): 600/800/250 mm The dimensions may vary depending on the version due to additional components such as filters, switches, etc.						Connections (bottom) Supply line (M25 screw connection) Pump (M25 EMC gland) PID feedback variable 0-10 V or 4-20 mA (e.g. pressure transmitter or level probe) (M16 screw connection) Temperature contact (PT100, PT1000 or PTC thermistor with step characteristic) (M16 screw connection) Dry-running protection, potential-free (M16 screw connection)
Protective functions Motor current limitation Adjustable blocking frequencies (pump cavitation) Adjustable overload protection (pump) Adjustable dry-running protection by measuring the motor current Overcurrent, overvoltage, undervoltage Phase loss (input/output)						Scope of delivery SPC Key Operating instructions Circuit diagram "ePlan Test protocol Parameter list

Bluetooth-Bundle available: Convenient control of the inverter with the App.

Optional

Pressure transmitter for pressure control
GSM module for fault messages
Project planning of the entire system
Installation, commissioning & service
Software: ST®DRIVE, ST®APP
Platform Fontaine 24/7
Cascade control

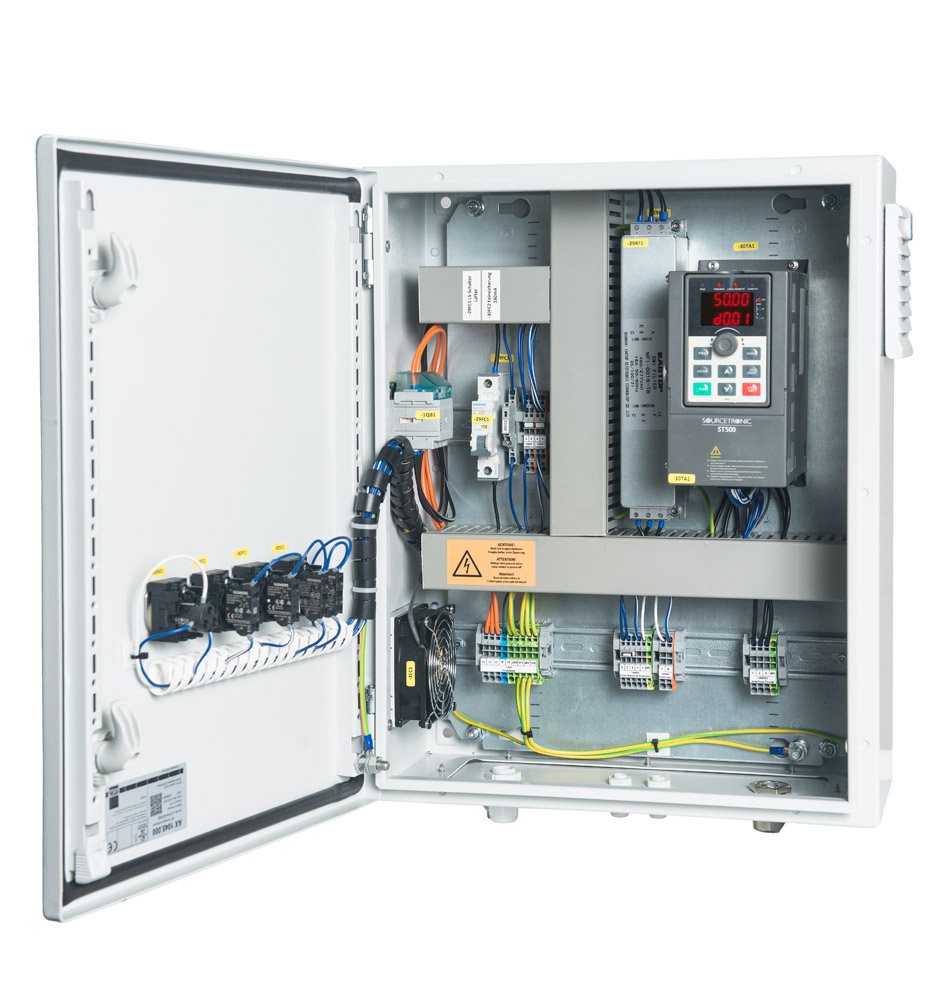

The SPC075 pump controller is the best choice for power-saving and versatile control/regulation of your pump application. Wired and tested according to standards, the SPC075 pump control offers the quality you have come to expect from Sourcetronic. The integrated ST500 frequency converter combines many electronic protective functions and state-of-the-art digital technology. Extensive functions of the inverter are read and controlled via a removable control panel with two-line LED display, multifunctional rotary wheel and 7 keys. The parameters of the frequency inverter can be conveniently stored in the display for easy transfer to other controllers.

This pump control is the professional solution for operating a pump in industrial and craft applications as well as in municipal sewage stations and pumping stations. The SPC075 has a manual and an automatic mode, which can be selected via a toggle switch in the control cabinet door. In manual mode, the pump runs at the frequency set with the potentiometer in the control cabinet door. In automatic mode, the integrated PID controller controls the speed of the pump. The control can be used in dependence of all process values (e.g. pressure control, level control) whose actual state can be transmitted to the inverter by means of a suitable transducer (0-10 V or 4-20 mA). The setpoint to which the pump control regulates the pump with the aid of the actual value (e.g. actual pressure) is set via the control panel of the frequency inverter. Optionally, the frequency inverter can be set so that the PID setpoint is specified with the potentiometer.
