Highlights

EAN: 4260689521739

Product number: 64204

• Power: 5.5kW to 15kW, 400V
• Precise PID control with frequency converter

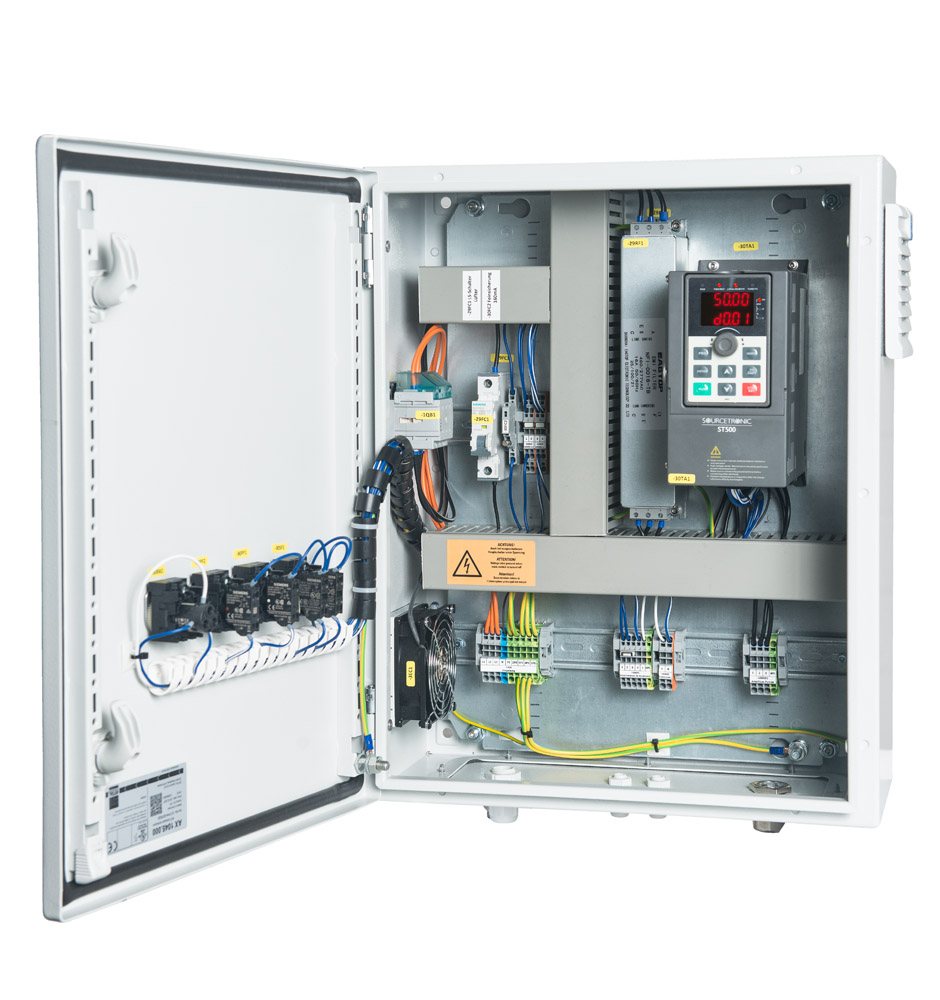

• Modular compact switchgear
• Switch for manual and automatic operation

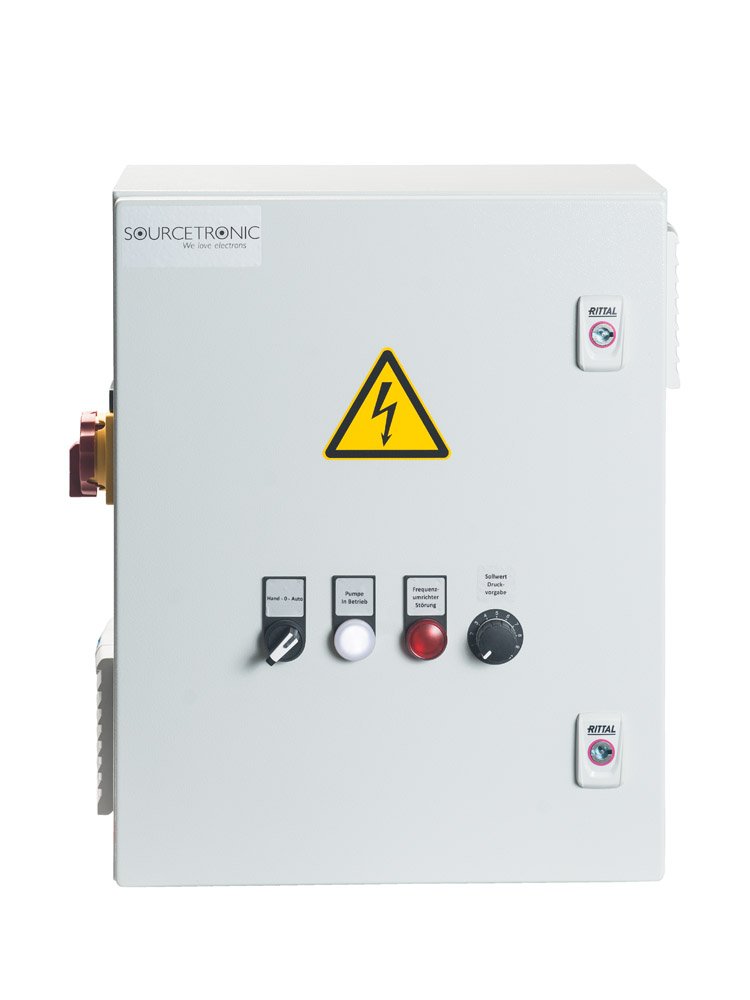

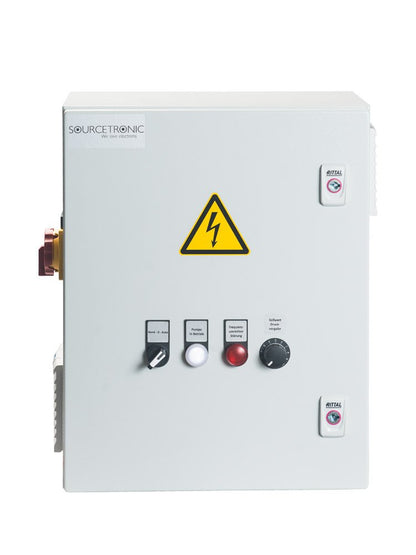

• 2 x indicator lights, 1 x potentiometer
• Integrated motor choke

• Dry run protection & motor protection
• Pressure, level, temperature control, etc.
• Efficiency according to IE2 (up to 98%)
• Software: ST®DRIVE, ST®APP
• Control voltage: 230VAC / 24VDC
• Protection class: IP54, EN60529/NEMA4
• Additional motor protection switch
• Gentle motor choke
• Thermostat for temperature adjustment

  Save time
  Designed with installer and operator in mind Intuitive user interface Same operation across the entire power range Optional remote service Readout of alarms, warnings incl. error protocol Warning messages via SMS Robust construction and efficient monitoring make the SPC maintenance-free Consultation and evaluation of your power quality, as well as selection of the right remedial measures
  Safe and energy efficient
  						SPC efficiency according to IE2 (up to 98%) Flow compensation Dry-running detection Check valve protection Sleep mode Password protection Overload protection Intelligent logic control Quieter motor noise Built-in EMC filters Intelligent cooling concept Robust housing with IP54 Power ratings from 0.75KW to 710KW
  Specifications
  Precise PID controller Completely monitors the drive and the system Reacts quickly to corrections Ensures stable operation Compensates for changing load characteristics						Sensor technology Magnetic inductive flow measurement Level sensors (pressure measurement, ultrasonic, radar) Temperature sensors
  Pipeline filling mode Enables controlled filling of the pipes (closed circuit) Prevents water hammer and pipe bursts Vertical and horizontal pipe systems Ideal for irrigation systems, water supply systems						Deep well shaft, submersible pumps and geothermal systems Energy saving with fluctuating delivery head Reduction of water hammer and wear Reduction of sedimentation
  Booster sets & cascade control
  						Pressurisation at a specific flow rate Always the desired system pressure and flow rate Cascade operation with stable pressure Customised for 3, 6 and 8 pumps and blowers Supports pumps of different sizes Precise level control Variable speed for some pumps and ON/OFF control of the remaining pumps Reduction of water losses Longer service life Maximum performance with minimum pressure surges Significant energy savings Reduced hydrofors by reducing pressure fluctuations Single-stage centrifugal pumps
  Application & Software
  Options DC coils for suppression of harmonics Breakage and leakage detection Motor changeover circuit						Applications Irrigation, sports facilities, green spaces Agricultural areas Cooling systems, cooling tower controls Groundwater lowering / holding
  Smartphone ST®APP Preconfigured parameters for pump controls Description of connection assignment Live graphics of monitoring and fine tuning Manual and auto control Speed via virtual potentiometer Detailed alarm/fault descriptions and countermeasures						Software ST®Drive Control via PC via USB Parameterisation and control Download parameter lists Monitor function



  Platform for pump controls Fontaine 24/7®

  • Acquisition of real-time sensor data (water level, flow rate, ...)
  • Operating water levels online
  • Creation of tables and graphics of temporal processes
  • Automated dispatch by e-mail
  • User administration with adjustable privileges
  • Control via encrypted communication?
  • Overview of pump control locations in GEO map view
  • Creation of well files and water accounting, as well as export

  What's in the box

  • SPC Key
  • Operating instructions
  • Circuit diagram "ePlan
  • Test protocol
  • Parameter list
