Highlights
Motor power: up to 1.5 kW / 400 V
Nominal current: 3.8 A
Integrated frequency inverter ST500
Line filter SFI (C2 environment)
Integrated motor choke

Dry-run protection via current measurement
Connections:

External dry-run protection

Motor temperature monitoring (PT100 /PT1000 /PTC)
Protection concept:

Overvoltage, undervoltage, overload protection

Phase-symmetry monitoring

Password protection

Technical Data
Power (motor): up to 1.5 kW
Output voltage (motor): 0–400 VAC 0–50 Hz
Maximum frequency: up to 3200 Hz
Operating voltage: 400 VAC 50/60 Hz
Nominal current (inverter): 3.8 A
Fuse rating: min. 16 A, max. 25 A
Supply cable: max. 2.5 mm² copper
Motor cable: max. 2.5 mm² copper, max. 50 m long (shielded)
Protection class: IP54, EN 60529 / NEMA 4
Dimensions (W/H/D): 400 / 500 / 210 mm
Weight: 20 kg

Functions

Manual operation:

Speed control via potentiometer in the control-cabinet door

Shut-off by setting the switch to “0”

Automatic operation:

Speed control via PID regulation according to the setpoint

Actual value from e.g. pressure transmitter or level probe

Pressure control, level control, temperature control (PID), etc.

Operating & indicator elements (SIEMENS):

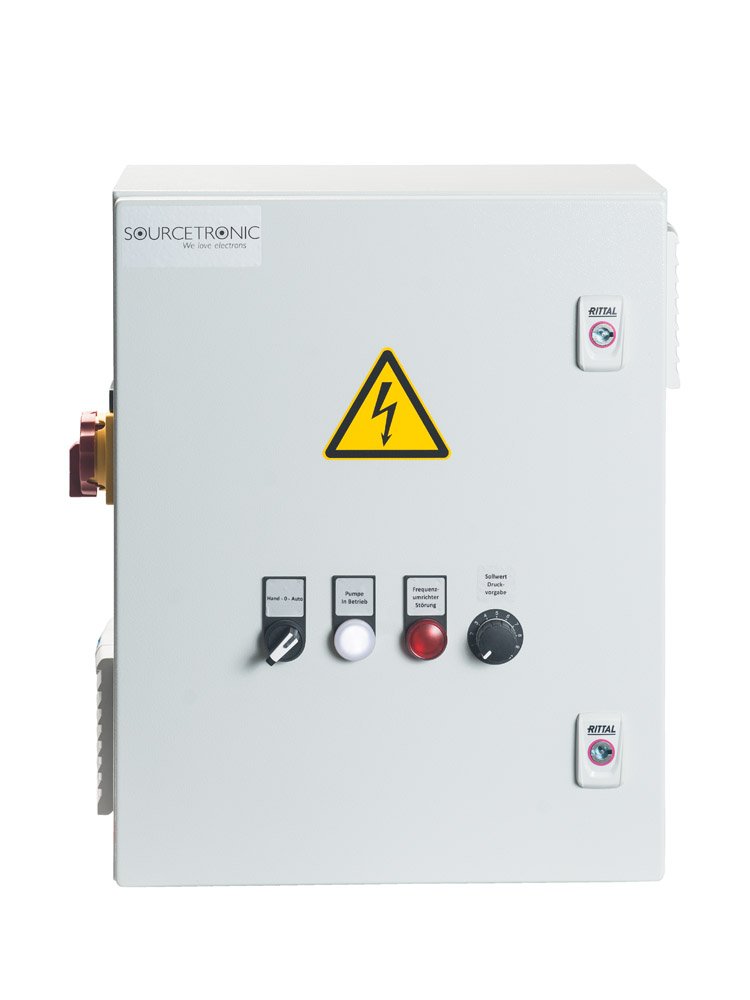

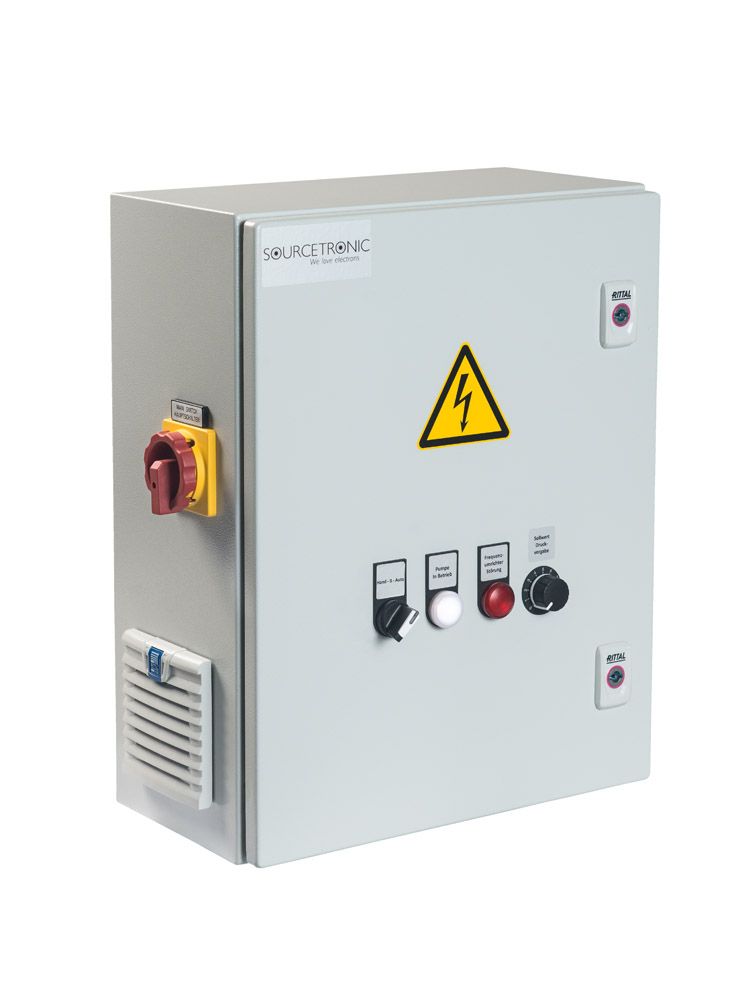

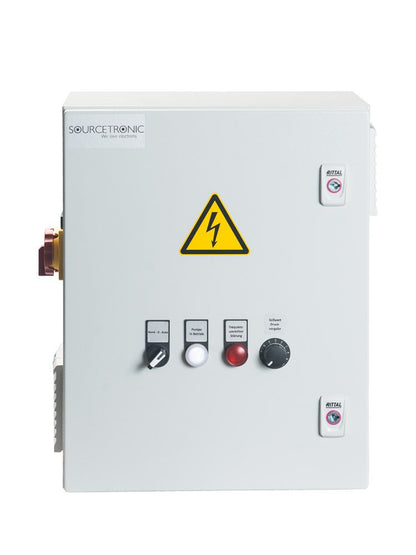

Main switch, latching (yellow/red, left side wall)

“Hand-0-Auto” rotary selector switch

Precision potentiometer 4.7 kΩ

Indicator lamp, red, “Fault”

Indicator lamp, white, “Pump running”

Variable START-STOP ramps

Standby and wake-up frequency

Operating-hours counter

150 % for 1 min, 180 % for 2 s overload capacity

Dual display inside (e.g. output frequency and motor current)

Other Data

Enclosure

Powder-coated and dip-primed steel

Single-door, fully enclosed, door gasket foamed in place

Left-hand door hinge with two latch closures

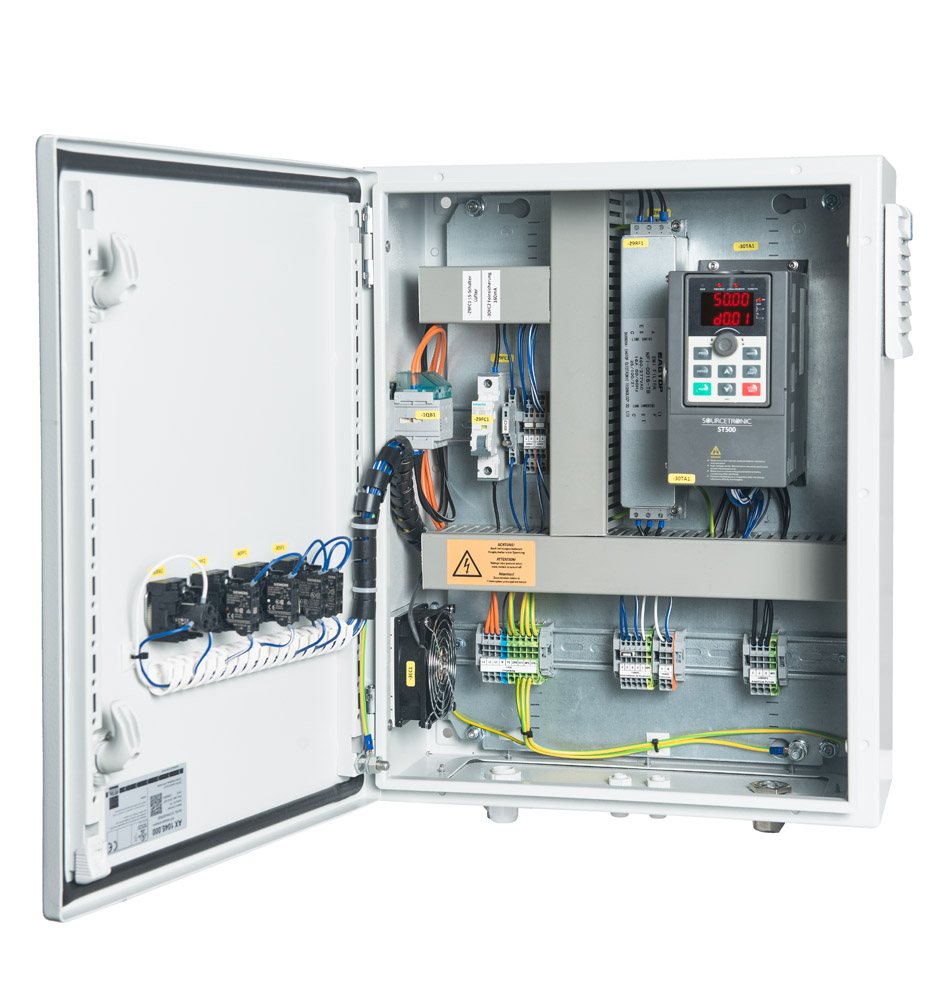

Galvanized mounting plate and WAGO connection terminals

Climate-controlled with TopTherm filter fan (B4A LS switch protected)

Color: RAL 7035 structure

Dimensions (W/H/D): 400 / 500 / 210 mm

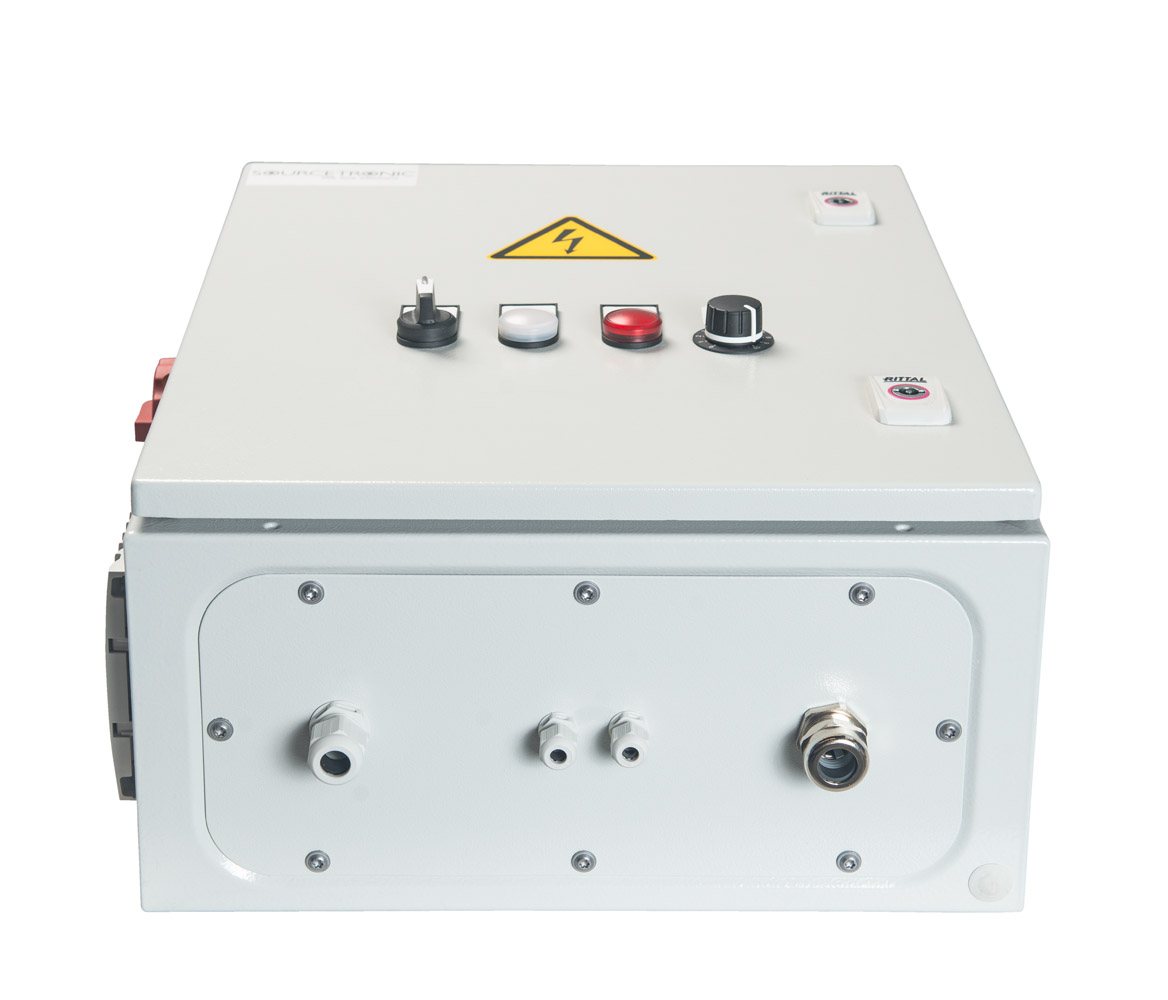

Connections (bottom)

Supply cable (M20 gland)

Pump (M20 EMC gland)

PID feedback 0–10 V or 4–20 mA (e.g. pressure transmitter or level probe) (M16 gland)

Temperature contact (PT100, PT1000 or PTC with jump characteristic) (M16 gland)

Dry-run protection, volt-free (M16 gland)

Protection functions

Motor-current limiting

Adjustable blocked-frequency (pump cavitation)

Adjustable overload protection (pump)

Adjustable dry-run protection via motor-current measurement

Overcurrent, overvoltage, undervoltage

Phase loss (input/output)

Scope of Delivery

SPC key

Operating manual

Circuit diagram (ePlan)

Test protocol

Parameter list

Bluetooth bundle available: comfortable inverter control via the app.

Optional

Pressure transmitter for pressure control

GSM module for fault notifications

System design and planning

Installation, commissioning & service

Software: ST®DRIVE, ST®APP

Fontaine 24/7 platform

Cascade control

The SPC015 pump controller is the ideal choice for energy-efficient and versatile control/regulation of your pump application. Wired and tested to standards, the SPC015 delivers the quality you expect from Sourcetronic. The integrated ST500 frequency inverter combines numerous electronic protection functions with advanced digital technology. Extensive inverter functions are accessed and adjusted via a detachable control panel featuring a two-line LED display, multifunction dial, and seven keys. Inverter parameters can be conveniently saved on the display for easy transfer to additional controllers.

This pump controller is a professional solution for operating pumps in industrial, craft, and municipal wastewater applications. The SPC015 offers both manual and automatic modes, selectable via a rotary switch on the cabinet door. In manual mode, the pump runs at the frequency set by the cabinet-door potentiometer. In automatic mode, the integrated PID controller regulates pump speed. Control can be based on any process value (e.g. pressure or level), with the actual value transmitted to the inverter via a suitable transmitter (0–10 V or 4–20 mA). The setpoint is adjusted on the inverter control panel, and optionally the PID setpoint can be assigned to the potentiometer.
